Auto-Refresh...

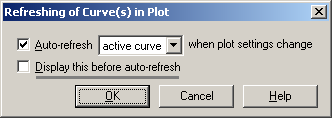

Displays the dialog shown below.

If  is checked, auto-refreshing is turned on. Auto-refresh will refresh the curve(s) if any settings influencing the viewed plot(s) are changed.

Examples of such settings are the plot type settings (push F5), the toolbar buttons influencing the plotting and changes in time window size.

If  is selected, the active measurement curve will be refreshed when there is a change in the settings that has an effect on the plot.

If  is selected, all measurement curves will be refreshed when there is a change in the settings that has an effect on the plot.

If you want this dialog to be always displayed before adding a new curve, just make sure  is checked. This is useful for beginners and it is checked as default in WinMLS.

Note: The settings in Plot->Layout->Edit... are not controlled by the auto-refreshing, as these settings are always immediately updated. E.g. if you change the plot background gradient colors, the change will take effect immediately, even before closing the dialog.
