Curve type

In the initially installed setups, the default curve type for most plot types is set to Fast Line as shown in the figure below.

This means that the curves are drawn using the Fast Line curve type. The available curve types are shown in the figure below.

Examples on what the curve types look like are found in Plot->Layout->Edit …. From this dialog the curve type in the current plot can be set.

In the dialog obtained from Plot->Layout->Edit Layout…, click on  shown in the figure above.

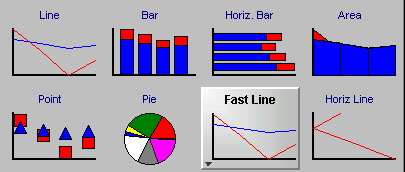

A new dialog will be displayed showing curve types to select from, some of which are shown in the figure below.

By clicking on the small arrow in the lower left corner of Fast Line , the possibilities for this line type is displayed as shown in the figure below.

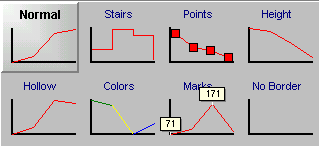

For the curve type Line, the following choices are possible.
