How to save the plot as a picture?

The active plot is saved to a picture format in File->Export Plot…. From this dialog box, several formats can be selected as shown below.

If the .tee-format is selected, the file can be opened by a viewer that comes with WinMLS and changes can be made, but if the plot consists of large amounts of data the size may be very large.

Ctrl+C or Edit->Copy Plot will copy the active plot to clipboard.

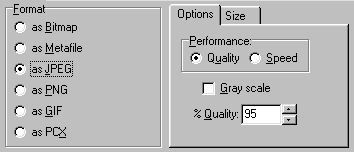

A method that gives access to advanced settings is found in Edit->Advanced Export.... In the dialog box click the Data tag. The dialog box will then show the settings below.

From the figure above, we see that it is possible to set the quality and size when saving as .jpg-file.
