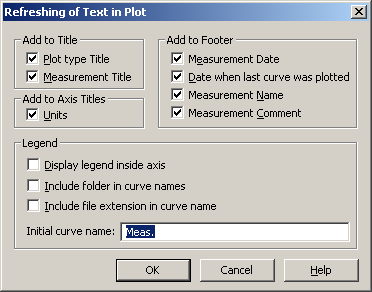

Displays the dialog box shown below.
The “Add to ....” settings shown in the upper part of the figure above determine if the plot title/footer/labels are to be automatically updated after a measurement is plotted. If no check boxes are checked, the text is not changed in the plot.
This is useful if you want to use your own text, for example set ‘Reverberation Time’ as the plot vertical axis title instead of the text that WinMLS automatically sets.

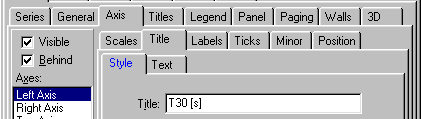

How to set your own text will now be explained. Go to Plot->Layout->Edit... and select the Axis tab, then select the Titles tab as shown in the figure below.
Instead of ‘T30 [s]’, write ‘Reverberation Time’ in the figure above.
