To measure the absolute
values and not just relative values, click the

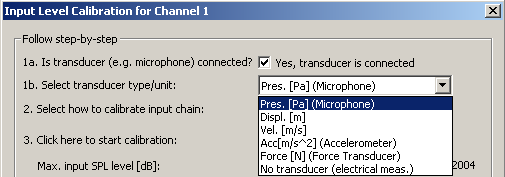

button on the standard toolbar. This will open the dialog box shown
below.
In step 1a. make sure
the
check box is checked.
In step 1b. select the type of vibration measurement device.
If you are measuring
with an accelerometer, select:
If you are measuring with a device for measuring velocity, select:
If you are measuring with a device for measuring displacement, select:
In step 2 we must select how the calibration should be done. There are two methods, Individual (advanced) and Combined (easy). These methods will be explained in the sections below
